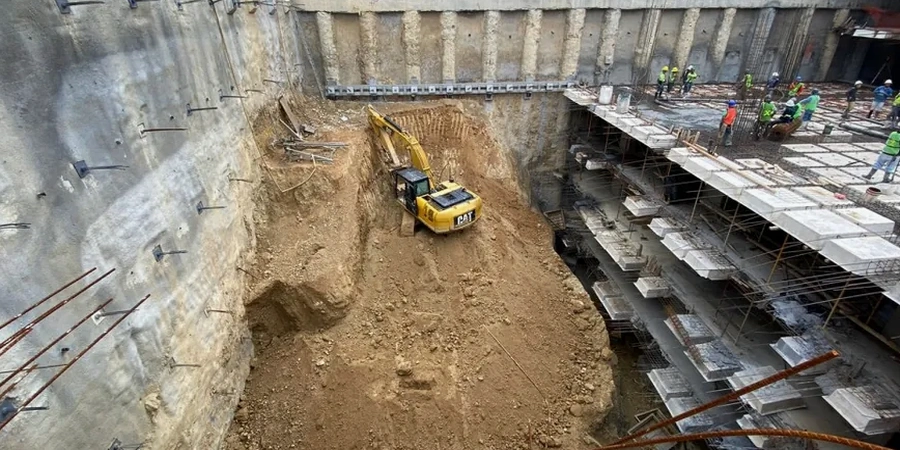

Deep Excavation Geotechnical Design in Brampton, Ontario

Q: What are the typical costs for a deep excavation design in Brampton?

This covers the subsurface investigation interpretation, finite element modeling, shoring wall design, and the preparation of stamped construction drawings and specifications.

A deep excavation in Downtown Brampton, where dense Halton Till overlies fractured shale, demands a fundamentally different shoring strategy than a cut in the sandier soils near Heart Lake. The contrast across the city is stark — what works on a tight infill site on Main Street often fails to account for the groundwater perched within the sandy interbeds common in the eastern suburbs. Our geotechnical team has spent years correlating borehole data across Brampton, mapping how the Oak Ridges Moraine deposits transition into the glaciolacustrine clays that challenge even the most experienced excavation contractors. When you are going down three or four levels for an underground parking structure, understanding the in-situ stress history and the potential for base heave is not optional. We integrate the CPT test data with laboratory triaxial results to calibrate numerical models that predict wall deflections before the first bucket of soil is removed, giving contractors and structural engineers a reliable baseline for the temporary works design.

Accurate prediction of wall deflection in Brampton’s stiff clays depends on capturing the true undrained shear strength profile — generic correlations miss the post-peak softening behavior.

How we work

A recurring observation from our field reviews across Brampton is that many excavation issues stem not from the wall design itself but from underestimating the influence of the regional groundwater regime. The city sits on a complex hydrogeological system where the Sunnybrook Drift acts as a partial aquitard, creating localized artesian conditions that can compromise open-cut excavations. A solid retaining wall design here must incorporate depressurization measures — typically involving deep wells or ejector systems — to control pore pressures at the subgrade level. Our approach combines limit equilibrium analyses with finite element modeling in PLAXIS 2D to simulate the staged construction sequence, capturing the stress redistribution that occurs as each strut level is preloaded. We specify observational protocols aligned with MTO guidelines, requiring inclinometer arrays and optical survey targets to track performance against the predicted deformation envelope. For cuts exceeding 6 meters, we routinely evaluate the risk of hydraulic uplift using Terzaghi’s method, factoring in the undrained shear strength profiles derived from field vane tests performed in the Upper Halton layers.

Local considerations

The freeze-thaw cycles that characterize Brampton’s winter months introduce a risk profile that southern Ontario engineers know all too well. Saturated clay faces exposed during a multi-month excavation can degrade rapidly when temperatures oscillate around the freezing point, leading to localized sloughing that compromises the lagging and, in extreme cases, undermines the soldier pile embedment. Our designs account for this seasonal exposure by specifying protective membrane covers and accelerated shotcrete application from November through March. Beyond the climatic concerns, the proximity of many downtown excavations to century-old masonry structures requires that we limit angular distortion to less than 1/500 — a criterion that often governs the stiffness of the bracing system more than the internal structural capacity of the wall. We use the Clough and O’Rourke envelope charts, adapted for the stiffness of Brampton’s overconsolidated tills, to estimate settlement troughs and advise on the need for underpinning or compensation grouting adjacent to sensitive heritage buildings.

Typical values

Parameter	Typical value
Maximum excavation depth analyzed (typical)	Up to 15 m (4 basement levels)
Primary soil units encountered	Halton Till / Sunnybrook Drift / Queenston Shale
Design standard for earth pressures	CGS Engineering Soil Mechanics Manual / CFEM 4th Ed.
Shoring system options	Soldier pile & lagging / Secant pile / Diaphragm wall
Groundwater control methods	Deep wells / Ejector systems / Sumps with filters
FEM software for staged analysis	PLAXIS 2D / RS2 (Phase2) / SIGMA/W
Monitoring instrumentation	Inclinometers / Optical prisms / Piezometers
Factor of safety against base heave	Minimum 1.5 per NBCC 2020 Commentary L

Other technical services

Shoring Wall Design & Staged Analysis

Complete design of soldier pile, secant pile, or diaphragm walls using PLAXIS 2D finite element models that simulate the sequential excavation and bracing process, calibrated with site-specific triaxial test data.

Tieback Anchor Design & Testing

Geotechnical design of grouted anchors in Brampton’s glacial tills, including bond length calculations per FHWA guidelines and specification of performance and proof testing procedures in accordance with PTI recommendations.

Base Stability & Groundwater Control

Detailed assessment of hydraulic uplift and base heave potential, with design of depressurization systems — deep wells, ejectors, or targeted sumps — to maintain a dry and stable subgrade during construction.

Construction-Phase Monitoring & Review

Installation and interpretation of inclinometers, piezometers, and optical survey arrays, with weekly engineering reviews comparing observed wall deflections and settlements against the performance-based design thresholds.

Common questions

What are the typical costs for a deep excavation design in Brampton?

How long does it take to complete the geotechnical design for a deep excavation?

A typical design schedule spans four to six weeks. The first two weeks focus on interpreting the geotechnical investigation data and developing the ground model. The subsequent weeks involve the staged numerical modeling, structural design of the shoring elements, and the preparation of the IFC drawing package, with an additional week reserved for peer review and revisions.

Which shoring system works best in Brampton’s Halton Till?

Soldier pile and lagging systems are very effective in the stiff Halton Till because the material can stand unsupported for short lifts between the piles, reducing the amount of exposed face. However, when groundwater is perched within sandy interbeds or when adjacent structures are within the zone of influence, a more rigid system like a secant pile wall provides better control of ground loss and settlement.

Do you handle the structural design of the bracing and walers?

Yes, our scope includes the full structural design of walers, struts, and corner braces in accordance with CSA S16 for steel and CSA A23.3 for concrete. We coordinate closely with the project structural engineer to ensure that the temporary bracing reactions are compatible with the permanent structure’s floor slabs and foundation elements.

What level of monitoring is required during the excavation?

We typically specify inclinometers installed behind the shoring wall at a spacing of no more than 20 meters, along with optical survey prisms on the wall face and on adjacent buildings. Piezometers are installed at multiple depths to track the performance of the dewatering system, with readings taken daily during active excavation and weekly during periods of inactivity.
