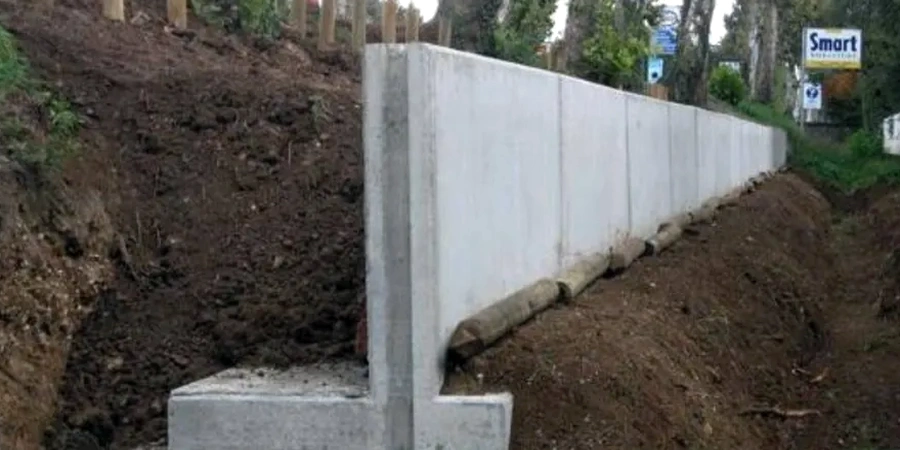

Retaining Wall Design in Brampton: Geotechnical Parameters for...

Q: How much does retaining wall design cost in Brampton?

5-The fee includes geotechnical parameter selection, structural calculations, permit-ready drawings, and a site-specific drainage detail.

Brampton sits on a complex stratigraphy of Halton Till overlying shale bedrock, with groundwater often within 2.5 metres of the surface in the Peel Plain physiographic region. For retaining wall design, these site conditions demand specific lateral earth pressure coefficients and drainage provisions that generic solutions cannot address. The city's rapid expansion—adding over 60,000 residents since 2016—pushes development onto marginal parcels where slope stability analysis becomes essential before wall alignment is finalized. Our approach integrates in-situ testing data with limit equilibrium methods to size stems, heels, and reinforcement for the 50-year design life required under the Ontario Building Code.

In Brampton's Halton Till, a 1-metre rise in groundwater behind a wall can double the bending moment at the stem base—drainage design is not optional.

How we work

Wall design parameters shift noticeably between northwest Brampton and the downtown core. Areas near Heart Lake sit on dense silty till with SPT N-values above 25 below 1.5 metres, producing friction angles of 33-35 degrees and manageable active pressures. South of Queen Street, pockets of glaciolacustrine clay and silt require consolidated-undrained strength parameters—effective cohesion often drops below 5 kPa once residual conditions develop. For taller structures around the Mount Pleasant transit hub, the team pairs wall analysis with deep excavation monitoring to track lateral deflections during staged backfill placement. Key design elements include:

Backfill specification matching Ontario Provincial Standards for free-draining granular material
Global stability checks incorporating the underlying shale bedrock interface
Bearing capacity verification on till with allowable pressures calibrated to SPT results
Surcharge loading from adjacent roadways per CHBDC CAN/CSA-S6-19

Local considerations

Brampton recorded a magnitude 5.0 earthquake in 1929 near the Peel Region border, and the 2010 Val-des-Bois event was felt across the GTA—a reminder that intraplate seismicity cannot be ignored in retaining wall design. The dominant risk is not overturning failure but progressive rotation caused by cyclic pore pressure buildup in the glaciolacustrine silt lenses underlying many residential subdivisions. A wall designed with static Ka alone may accumulate 15-25 mm of outward tilt over a decade if drainage weeps clog with fines from the till matrix. Frost penetration reaching 1.2 metres in Brampton winters introduces additional lateral thrust from ice lensing in the backfill zone, a mechanism rarely captured in standard software defaults but critical for walls retaining driveways or walkways.

Typical values

Parameter	Typical value
Active earth pressure coefficient (Ka)	0.27 - 0.31 (Coulomb, δ = 2/3 φ)
At-rest earth pressure coefficient (K₀)	0.43 - 0.50 (NC clay/silt)
Backfill friction angle (compacted granular)	34° - 38° (OPSS 1010 Type A)
Foundation till allowable bearing capacity	150 - 300 kPa (SPT N > 15)
Sliding resistance coefficient (concrete on till)	0.45 - 0.55 (δ = 2/3 φ)
Seismic coefficient (NBCC 2020, Brampton)	kh = 0.06 - 0.09 (Site Class D)
Design groundwater elevation (typical)	1.0 - 2.5 m below finished grade

Other technical services

Gravity and Semi-Gravity Wall Design

Mass concrete and reinforced concrete gravity walls analyzed for overturning, sliding, and bearing on Halton Till. We size the base width to maintain a factor of safety of 2.0 against overturning under seismic load combinations per NBCC 2020.

Cantilever and Counterfort Retaining Walls

Reinforced concrete stem-and-base walls with heel and toe proportioned for the backfill profile. Counterforts are introduced when wall height exceeds 5 metres, reducing stem bending moments by up to 40 percent compared to a cantilever section.

MSE Walls with Geogrid Reinforcement

Mechanically stabilized earth walls using uniaxial geogrids with long-term design strength calibrated to 75-year creep reduction factors. Facing panels are detailed as precast concrete segments compatible with Peel Region streetscape standards.

Drainage System Design

Weep hole spacing, chimney drains, and perforated collector pipes sized for Brampton's spring snowmelt runoff. Filter fabric selection follows Ontario Provincial Standard OPSS 1860 to prevent fines migration from the retained till into the drainage medium.

Common questions

What is the minimum embedment depth for a retaining wall in Brampton?

The Ontario Building Code requires a minimum embedment of 1.2 metres below finished grade for frost protection. On sites with Halton Till, we typically specify 1.0 metre of embedment into competent native material, plus an additional 0.3 metres if the wall is within 1.5 metres of a property line to satisfy municipal zoning requirements for the City of Brampton.

Do I need a building permit for a retaining wall in Brampton?

A permit is required when the wall exceeds 1.0 metre in height or is supporting a surcharge such as a driveway, building, or public sidewalk. Walls under 1.0 metre that are purely landscaping features may not require a permit, but the City of Brampton's Building Division reviews each case for proximity to lot lines and drainage impacts.

How much does retaining wall design cost in Brampton?

What soil parameters control the wall design in Brampton's till?

The Halton Till in Brampton is a stiff, overconsolidated silty clay till with an undrained shear strength typically between 75 and 150 kPa. For drained analysis, effective friction angles of 32-35 degrees and cohesion intercepts of 0-5 kPa are used. The key parameter is the long-term groundwater elevation: if the design water table is within the retained height, hydrostatic pressure dominates the lateral load and must be relieved by a properly filtered drainage system.
